Installing a self-service car washer isn’t just about placing a machine on the ground—it’s about creating a reliable, safe, and profitable setup that serves customers for years. Whether you’re a business owner adding a new revenue stream or a property manager enhancing amenities, the difference between frustration and success lies in following a structured process with the right equipment. Enter the Sino Star SCW-109: a compact yet powerful self-service car washer designed to simplify installation without compromising performance. In this guide, we’ll walk you through every stage of installation, highlight non-negotiable safety checks, and show why the SCW-109 stands out. Plus, don’t miss our Youtube channel for video tutorials and pro tips!
Phase 1: Site Preparation – Lay the Groundwork for Success
The best equipment fails in a poor location. The SCW-109’s space-efficient design (800x800x1800mm) means it fits in tight spots, but smart site selection maximizes usage. Aim for areas with daily vehicle traffic of 500+ cars—think gas stations, residential complex entrances, or shopping mall parking lots. You’ll need a minimum of 60㎡ to accommodate the machine, a washing bay, and customer movement.
Concrete preparation is non-negotiable. Pour a 10cm-thick reinforced concrete slab to support the SCW-109’s 250kg weight; uneven surfaces cause operational issues long-term. Embed drainage grates with a 2% slope to prevent water pooling—stagnant water damages equipment and creates slip hazards. For (water and electricity) pre-installation, follow the “pipes down, wires up” rule: run DN20 water pipes 50cm underground to the machine’s position, and route 220V single-phase electrical cables (2.5mm² copper) through overhead conduits to avoid crushing.
Pro tip from Sino Star engineers: Install a water pressure regulator if your supply exceeds 10MPa—the SCW-109’s high-pressure system is calibrated for this sweet spot, preventing valve damage. Check local regulations for environmental(filings) too; many regions require connecting to water monitoring platforms to ensure compliance with conservation standards.
Phase 2: Equipment Installation – Precision Meets Simplicity
The SCW-109 arrives partially pre-assembled, cutting installation time by 40% compared to competitors. Here’s how to get it running:
1. Level and Secure the Unit
Start by adjusting the SCW-109’s bottom leveling feet—rotate them until a spirit level confirms all four corners are even. For sloped surfaces, use Z-shaped iron plates and M12 expansion bolts to anchor the machine to the concrete; this prevents shifting during high-pressure operation. A stable base is critical: even 1cm of imbalance can cause vibrations that wear down internal components.
2. Water and Electrical Connections

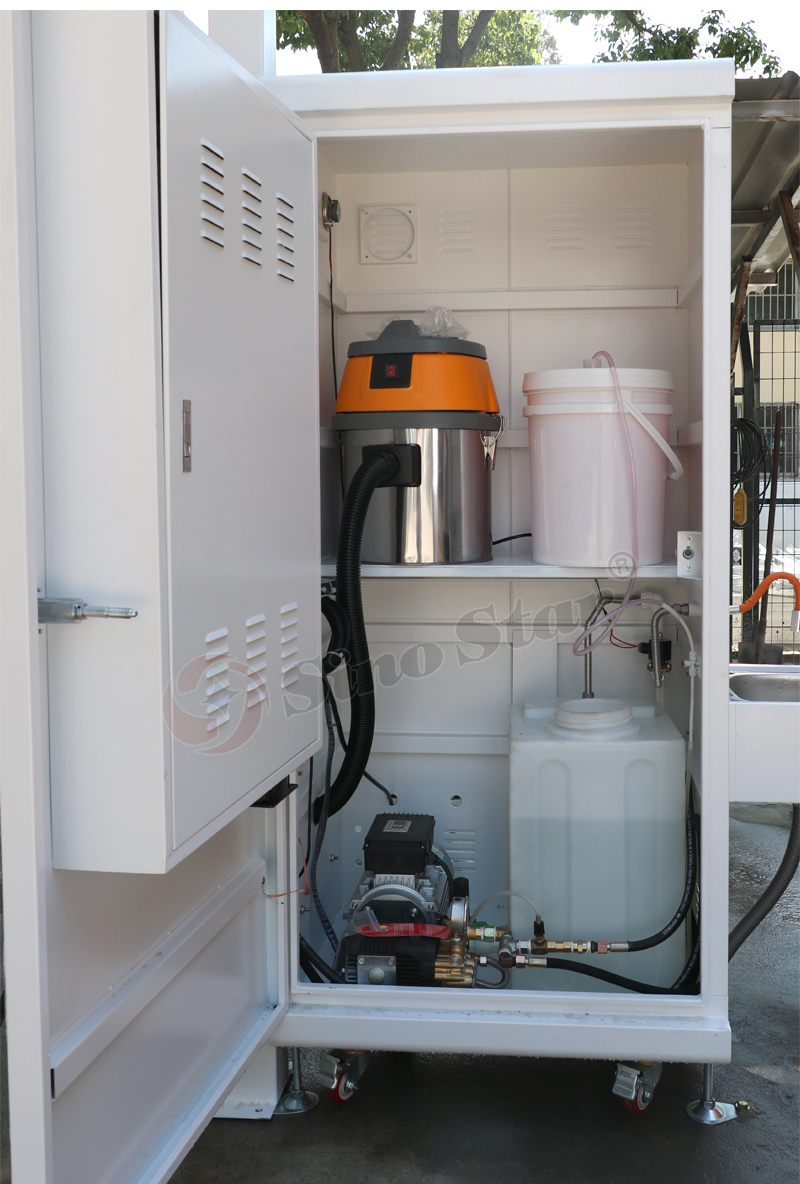

Connect the included water filter to your main supply and the machine’s inlet—this traps sediment that clogs the 12L/min high-pressure pump. The SCW-109 uses a 5.5kW motor, so wire it to a dedicated 30A circuit breaker with earth leakage protection (ELP); this shuts off power instantly if current leaks, a life-saving safety feature. Never use extension cords—they overheat under load.
3. Component Assembly
Attach the 5m water hose and 6m vacuum pipe to their quick-connect fittings—twist until you hear a “click” to ensure a leak-proof seal. For the top elbow pipe, insert one end into the chassis’ pre-drilled hole, secure with hex screws, and rest the other end on the included support bracket. Tighten the bracket’s bolts only after aligning the pipe to avoid stress cracks. Finally, mount the LED work light and thread its wires through a metal conduit—exposed cables are a fire risk in wet environments.
Phase 3: Calibration & Safety Checks – Don’t Skip This!
Installation isn’t complete until you verify every function. Power on the SCW-109 and run these tests:
• Pressure Test: Activate the high-pressure gun—ensure it reaches 10MPa (check the digital display). Low pressure indicates a hose kink or filter blockage.
• Infrared Sensor Calibration: Wave a car panel in front of the sensor; the machine should activate within 0.5 seconds. Misalignment means customers will struggle to start cycles.
• Safety Lockout: Simulate a power surge— the ELP should trip immediately. Test the emergency stop button too; it cuts all power in 0.1 seconds.
For the SCW-109’s coin/card system, program your desired settings (e.g., 1 coin = 3 minutes) using the control panel—no technical expertise needed. Sino Star pre-sets default parameters, but customization takes just 5 minutes.
Why the SCW-109 Makes Installation a Breeze
What sets the SCW-109 apart? Its hot-dip galvanized frame resists rust, even in rainy climates, reducing maintenance costs. The compact footprint means it fits where larger machines can’t—ideal for urban locations. Plus, Sino Star’s 1-year warranty covers parts and labor, with 24/7 technical support via WhatsApp (+86-15900433721) for urgent issues.
Business owners love the SCW-109’s dual-gun design (high-pressure and foam) that boosts customer satisfaction, while the 3L soap tank ensures consistent foaming without frequent refills. It’s not just an installation win—it’s a profitability win.
Final Tips & Next Steps
Post-installation, inspect connections weekly for leaks and clean the water filter monthly. For visual learners, our Youtube channel has step-by-step videos of the SCW-109 installation, plus troubleshooting guides for common issues like low pressure or sensor errors. Subscribe now to get exclusive access to Sino Star’s installation checklist and maintenance schedule.
Installing a self-service car washer doesn’t have to be daunting. With the right process and the SCW-109’s user-centric design, you’ll be up and running in a day—no specialized crew needed. Visit www.carwashmachine.net to learn more about the SCW-109, or contact our team for a personalized site assessment.
