K9 Pro
Sino Star
Availability: | |
---|---|
Quantity: | |
Model | K9 Pro |
Power Supply | 380V/50Hz/3Ph 50KW |

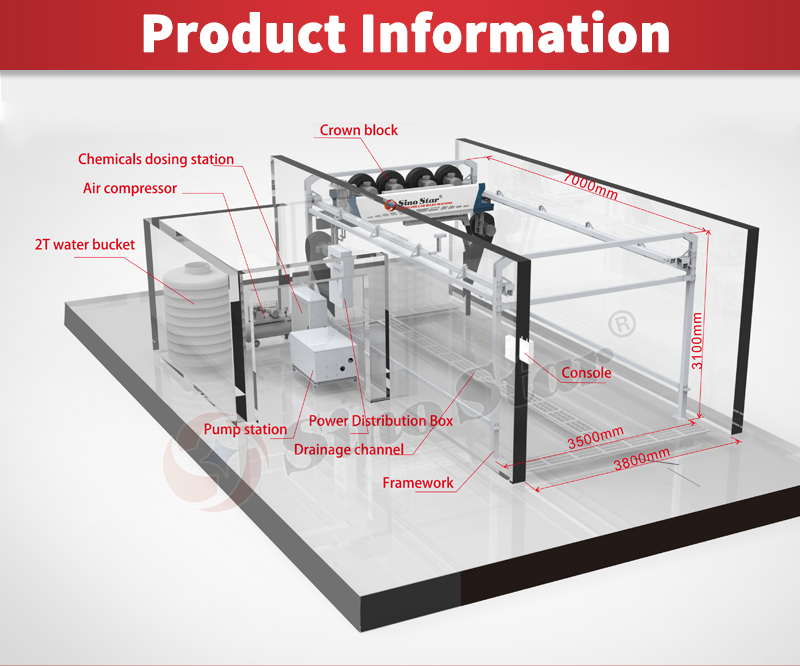

Min. Installation Sizes(mm) | 7000*4000*3200mm L*W*H |
Max. Vehicle Sizes(mm) | 5600*2600*2050mm L*W*H |
Rail Length(mm) | 7000mm |
Shipping Weight/Volume | 2100kg/11m3 |
Guarantee | 3 Years Warranty |
Water Pump Motor Power(kw) | 380V/15KW |
Air Fan Motor Power(kw) | 5.5KW*6pcs |
Water Pressure | 60-100bar |
Rinse a circle | 30seconds |
Car Wash Time(min) | 2~5Minutes/car |
Water Consumption(L) | 80-150L/car |
Chemical Consumption(ml) | 20-50ml/car |
Electricity Consumption(Degree) | 0.3-0.8degree/car |
CPU | Embedded CPU Industrial control |
Longitudinal/Transversal /Rotate | Inverter Drive |
Vehicle Detection System | Ultrasonic and encoder |
Chemical Mixing System | Metering pump automatic proportioning |
Anti-collision System | Electronic Anti-collision System |
Lighting system | Main light+gradient light |
360-degree rotating Rinse | 304 stainless steel swivel arm Up and down ectopic flushing |
Chemical Mixing System Small Water Pump | 304 stainless steel pump |
Sheet Metal Process | Automotive Grade Process Electrophoretic Coating |
Self -service parking system | Voice LED arrow prompt guidance |
Under chassis wash system | 304 stainless steel |
Mounting Frames | 100*100*4Hot Dip Galvanized |
LED Wash Steps Display and countdown | ● |
Leakage protector | ● |
High pressure rinse | ● |
Chemical Mixing System | ● |
Shampoo | ● |
Foam | ● |
Wax | ● |
Fixed Air Dryer+ Up and Down | ● |
Side Air Dryer | ● |
Anti-collision System | ● |
APP Management System | ● |
Frequency Drive System | ● |
Remote Control | ● |
Tool Bag | ● |
HMI Touch Screen | ● |
Permission Setting | ● |
Car Wash Quantity Summary | ● |
Auto Standby Function | ● |
Fault Self-test Function | ● |
One Key Reset | ● |
Remote operation | ● |
LED panel light | ● |
Custom wash programs | ● |
Mounting Frames | ● |
Anti-frozen drainage function | ● |
Multi-liquid reuse function | ● |
One key anti-frozen drainage system | ● |
Anti-blocking nozzle | ● |
Multi Languages Operation Sytem | ● |
