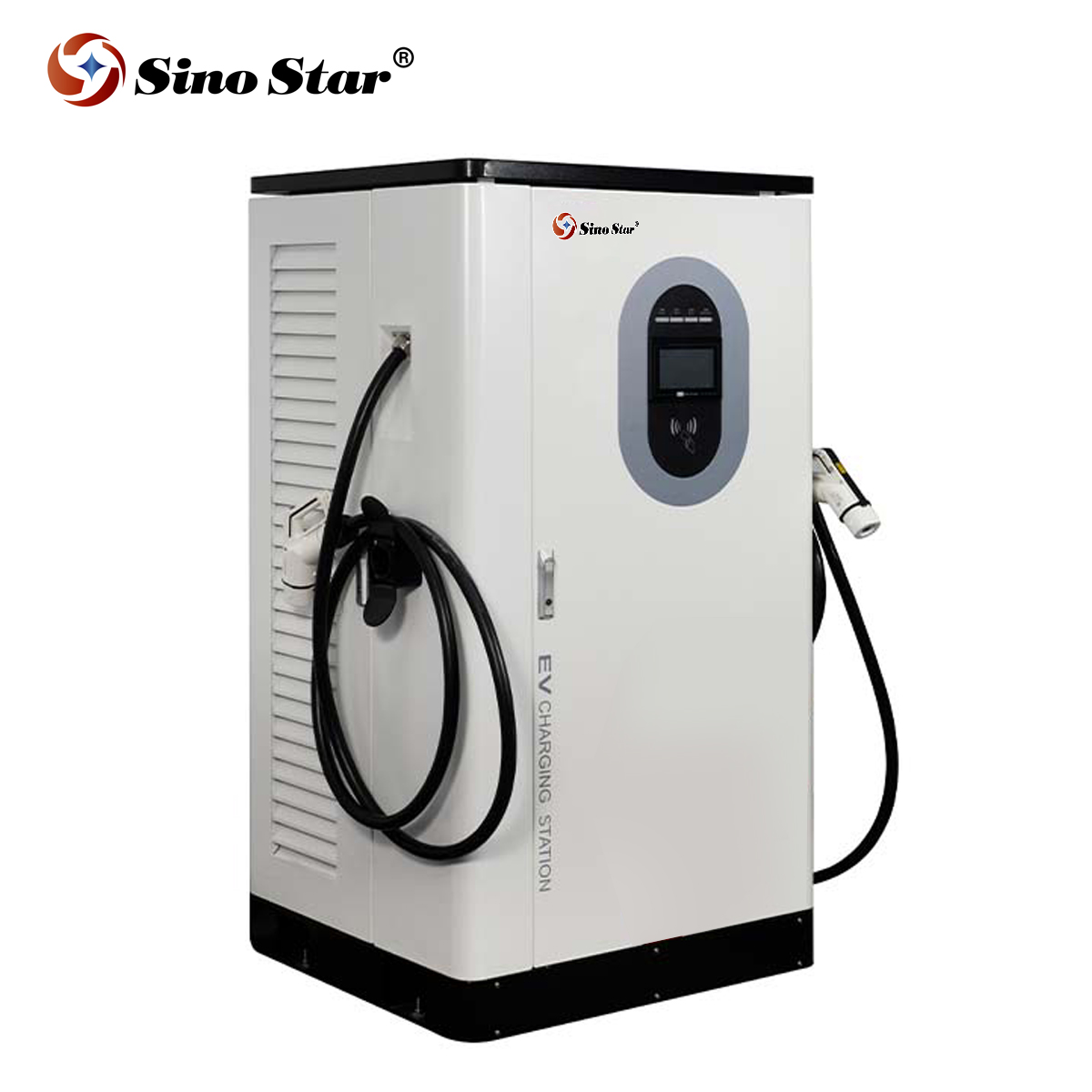

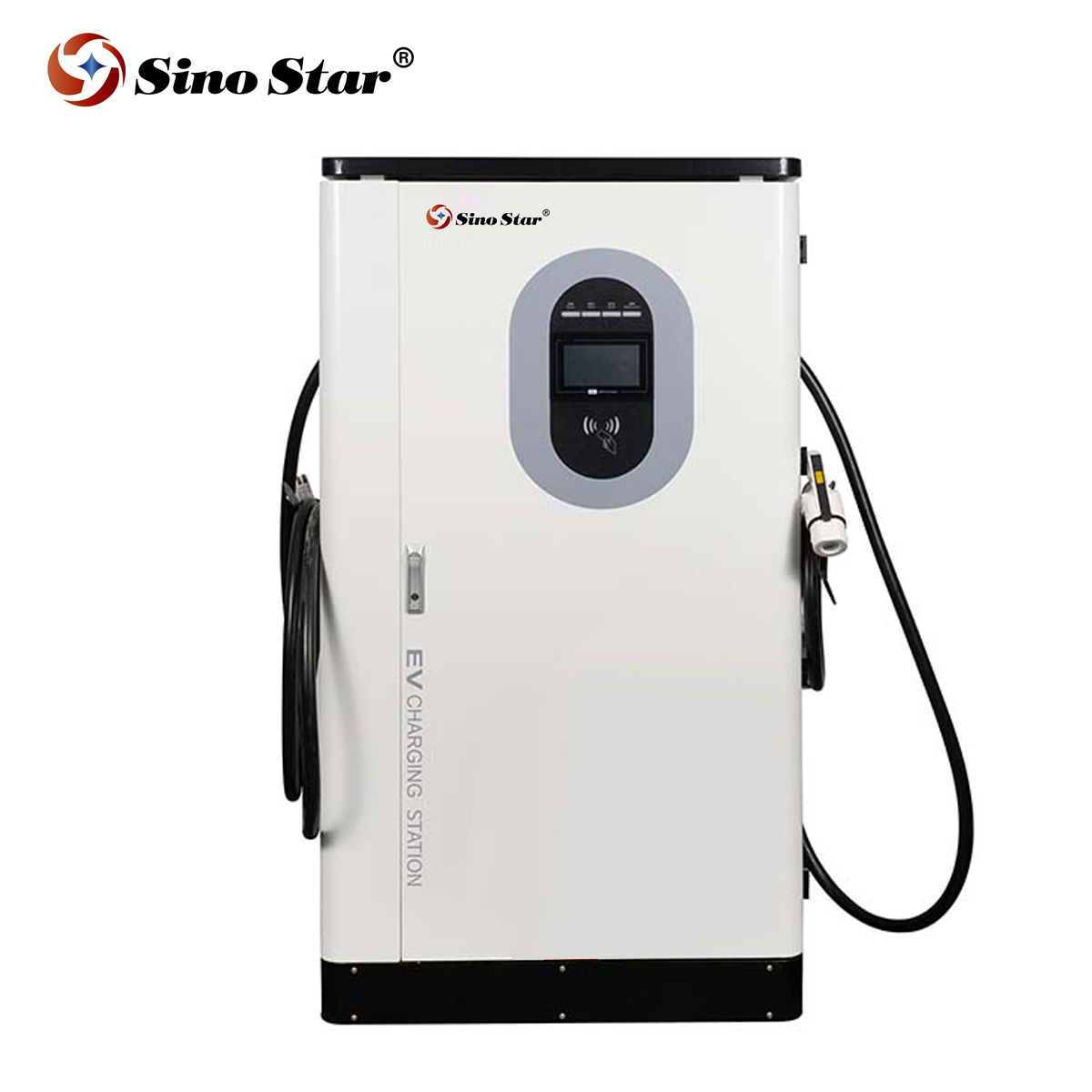

| Model | SS-DC-320-Y-B-O-4 | SS-DC-360-Y-B-O-4 |
| Installation Method | Floor stand mounted | Floor stand mounted |
| Product size (mm) | 1000*900*1850mm | 1000*900*1850mm |
| Pacage size (mm) | 120X110X200 cm | 120X110X200 cm |
| G.W (kg) | 600kg | 600kg |
| INPUT |
|
|
| Voltage | 380VAC±15% | 380VAC±15% |
| Input frequency | 50/60Hz | 50/60Hz |

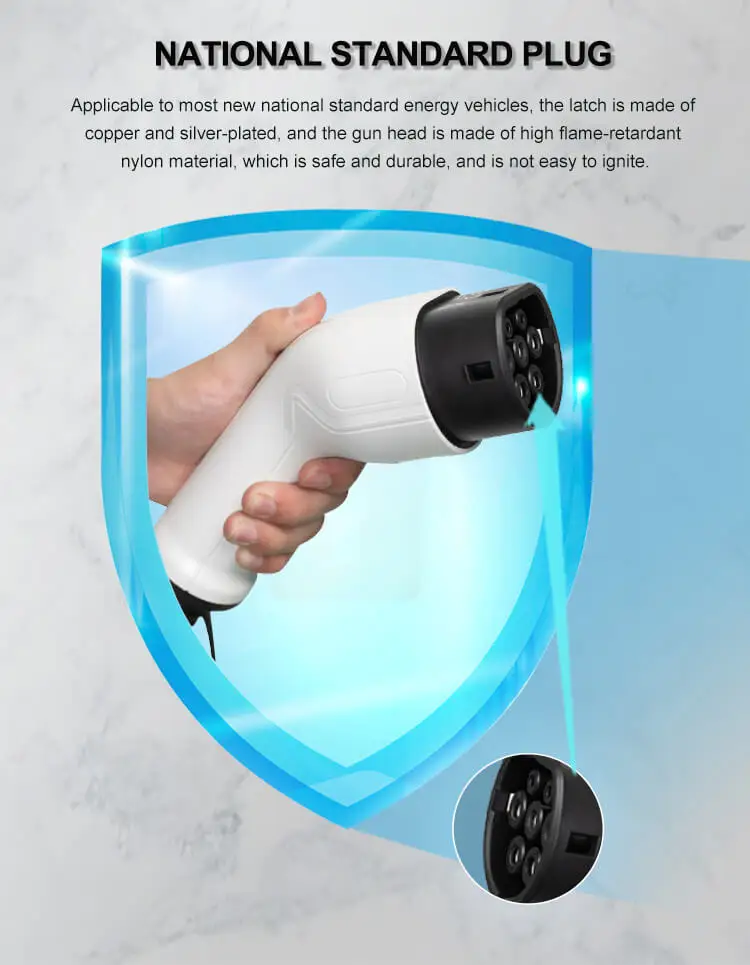

| Single Gun Output Current Range | CCS2: 0-250A | CCS2: 0-250A |
| OUTPUT |
|
|
| Voltage | DC200-1000V | DC200-1000V |
| Rated power KW | 320kW | 360kW |

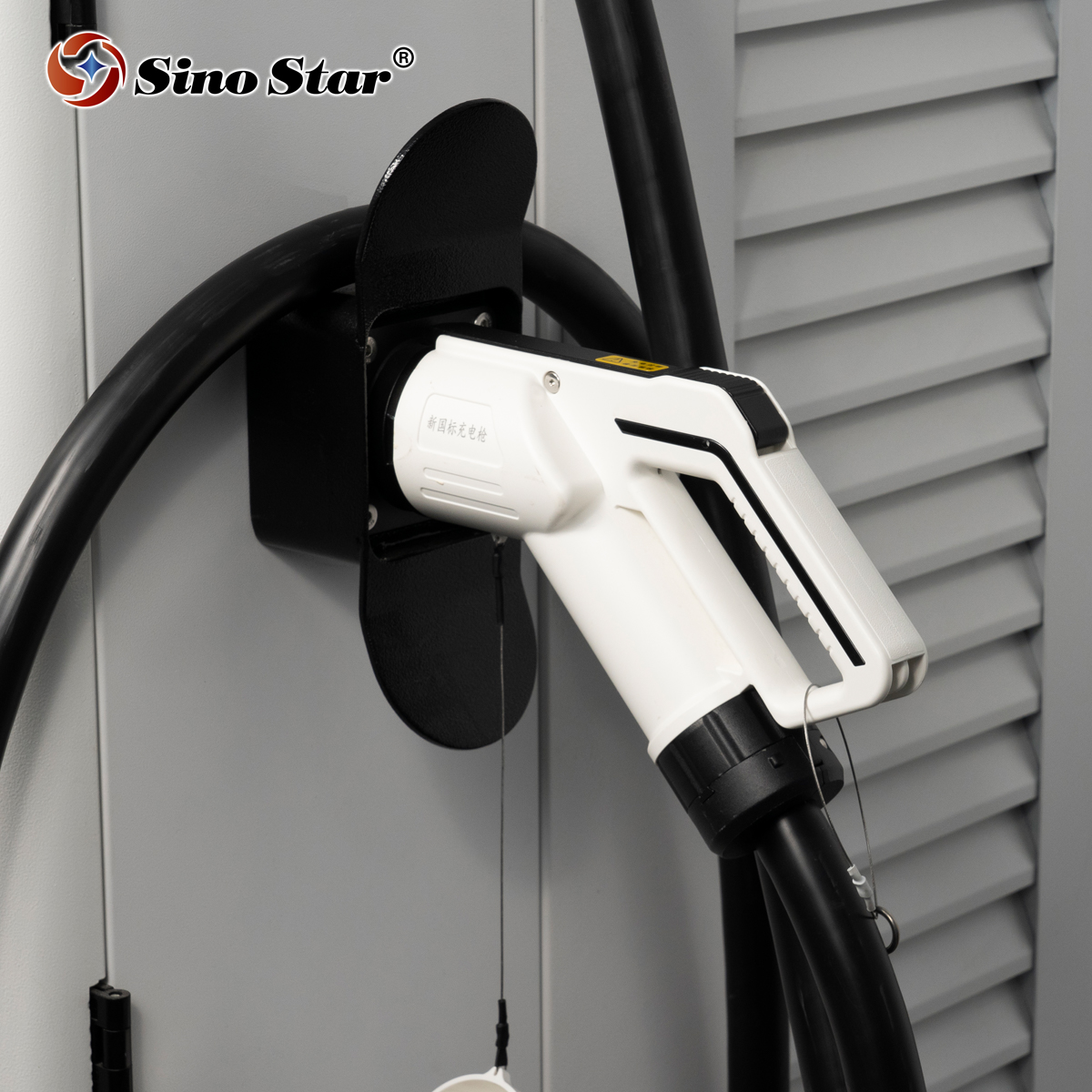

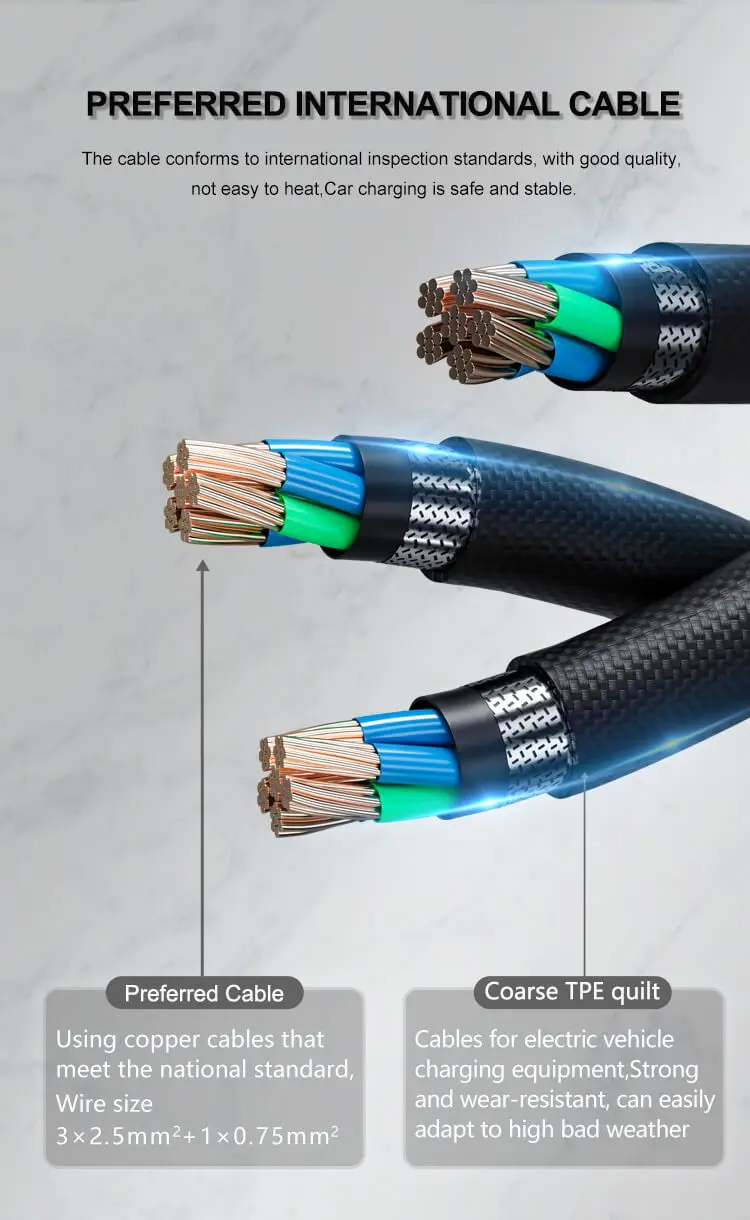

| Charging cable length | 5m | 5m |
| Accuracy | Level 1.0 | Level 1.0 |
| Electrical Specification |
|
|
| Current Limit Protection Value | ≥110% | ≥110% |
| Voltage Stabilization Accuracy | ≤±0.5% | ≤±0.5% |
| Current Stabilization Accuracy | ≤±1% | ≤±1% |
| Ripple Ratio | ≤±0.5% | ≤±0.5% |
| Efficiency | ≥95% | ≥95% |
| Power Factor | ≥0.98 (above 50% load） | ≥0.98 (above 50% load） |
| Harmonic Content THD | ≤5% (above 50% load） | ≤5% (above 50% load） |
| RCD |
| / |
| Functional Design |
|
|
| Human-computerinteraction | 7-inch bright colortouch screen,LED Indicator | 7-inch bright colortouch screen,LED Indicator |
| Charge mode | Automatic charging full / Fixed power /Fixed Amount / Fixed time | Automatic charging full / Fixed power /Fixed Amount / Fixed time |
| Charging method | NFC (Swipe to charge), scan QR code to charge | NFC (Swipe to charge), scan QR code to charge |
| Payment Methods | Swipe the card, scan QR code, Password | Swipe the card, scan QR code, Password |
| Networking methods | Ethernet, 4G | Ethernet, 4G |
| Executive standards | EN IEC 61851-1: 2019, EN 61851-23: 2014EN IEC 61851-21-2: 2021, EN IEC 61000-6-1: 2019 | EN IEC 61851-1: 2019, EN 61851-23: 2014EN IEC 61851-21-2: 2021, EN IEC 61000-6-1: 2019 |
| EVSE to Backend | OCPP1.6J | OCPP1.6J |
| Environmental Indicators |
|
|
| Working Temperature | -20℃ ~ +50℃ | -20℃ ~ +50℃ |
| Working Humidity | 5%~95% non-condensing frost | 5%~95% non-condensing frost |
| Working Altitude | ＜2000m | ＜2000m |
| Ingress Protection | IP54 | IP54 |
| Cooling Method | Air-cooled | Air-cooled |
| Noisy Control | ≤65dB | ≤65dB |
| MTBF | 17520 hours | 17520 hours |
