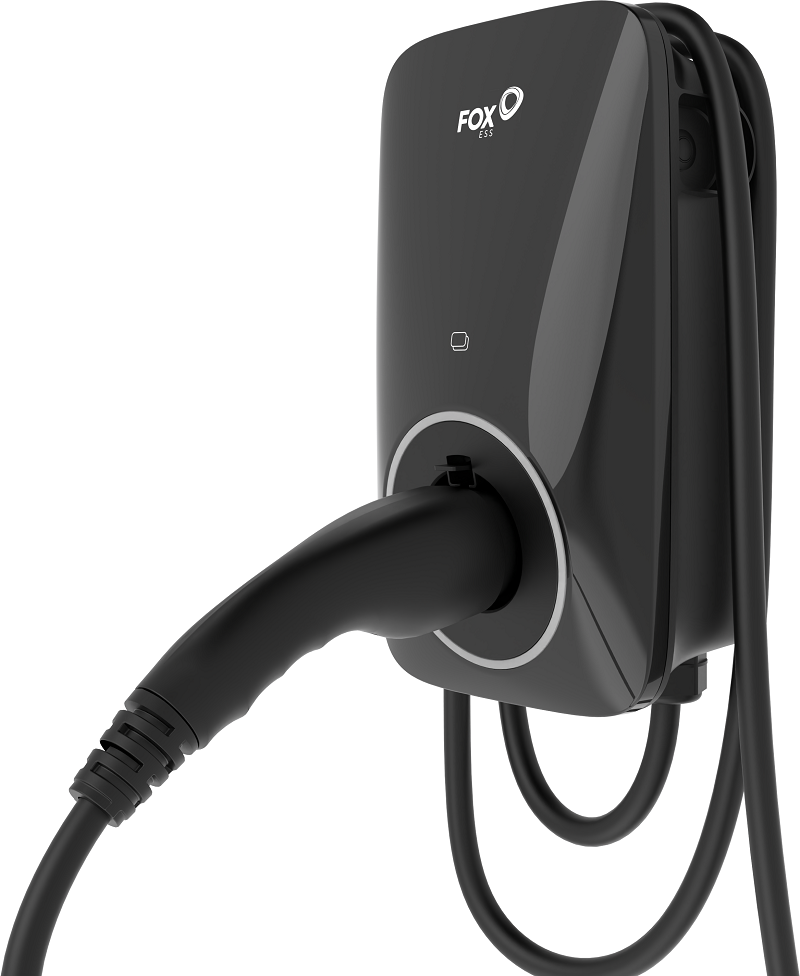

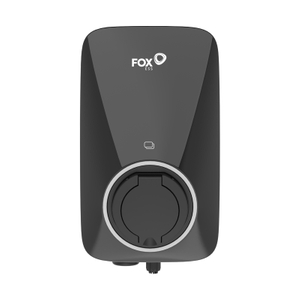

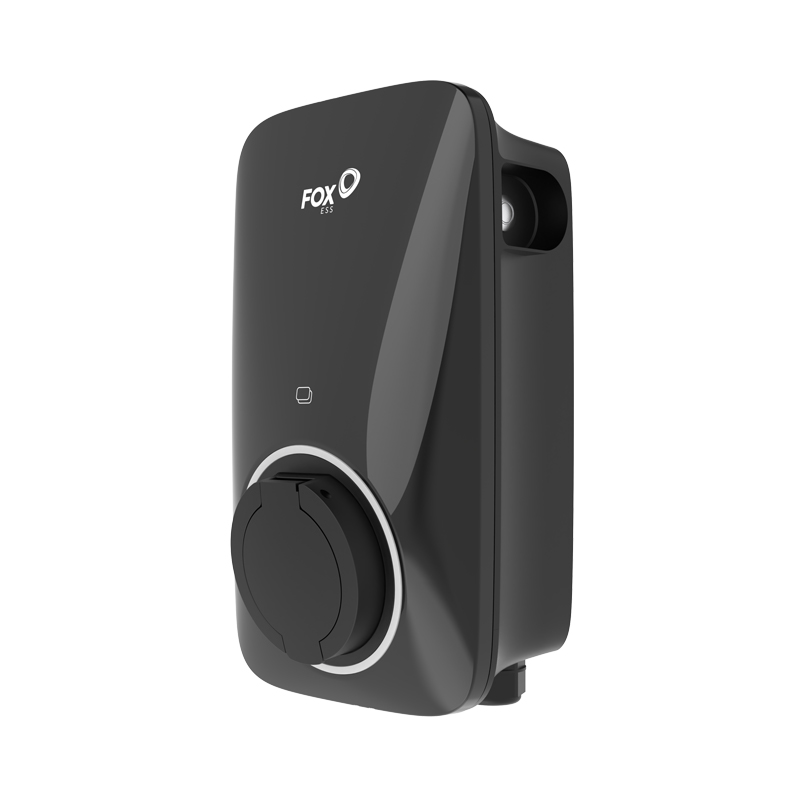

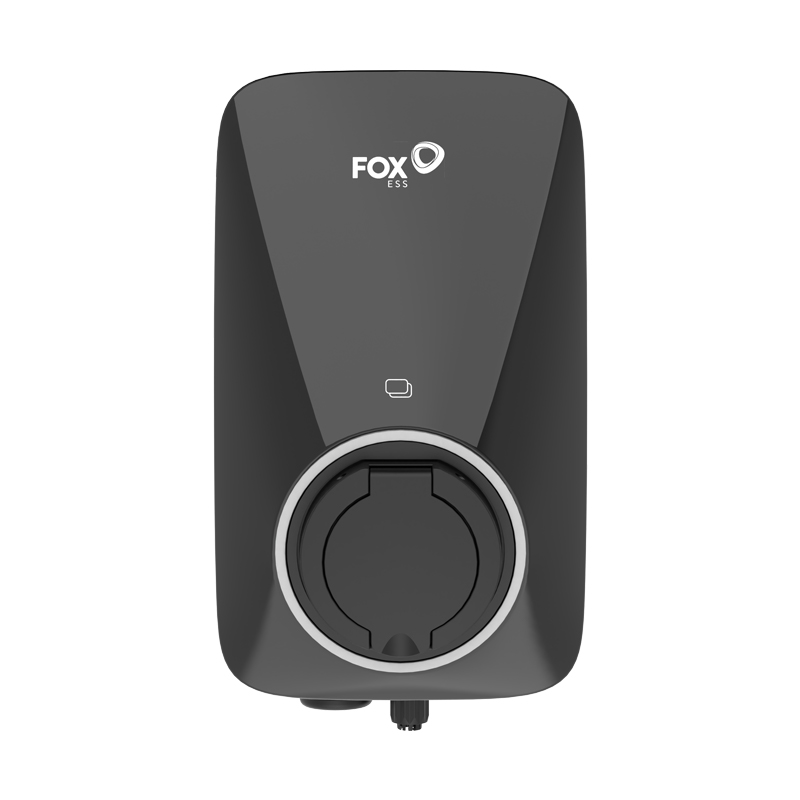

Type2 Wallbox EV Charger 22KW Fast EV Charging Station AC Wallbox EV Charger A022KP1-E-2-W

Model:
A022KP1-E-2-W

Quantity:
Availability:





Inquire Add to Basket

Product Description

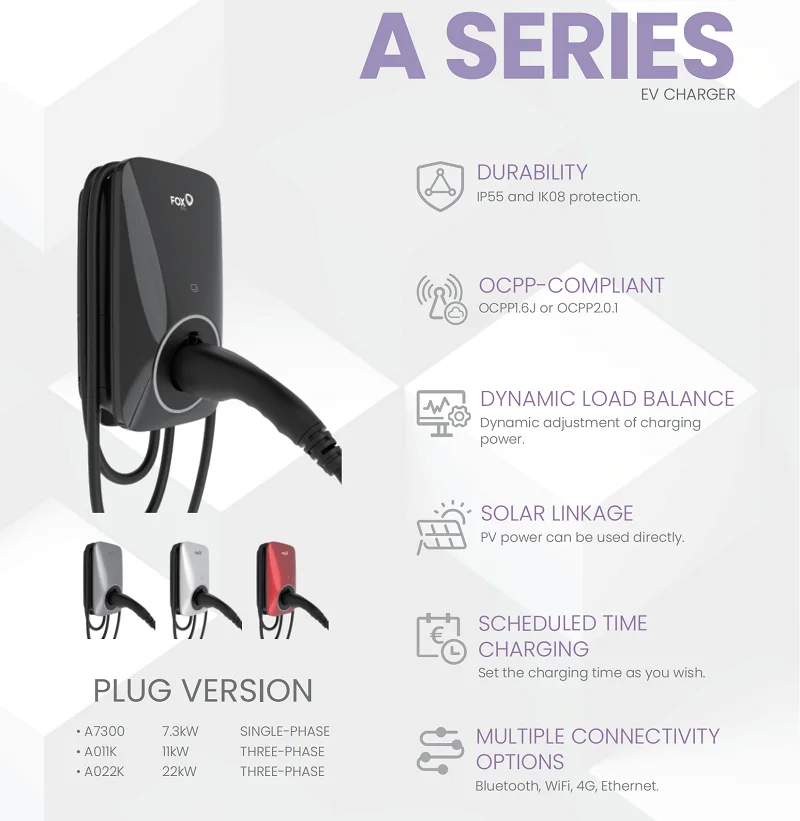

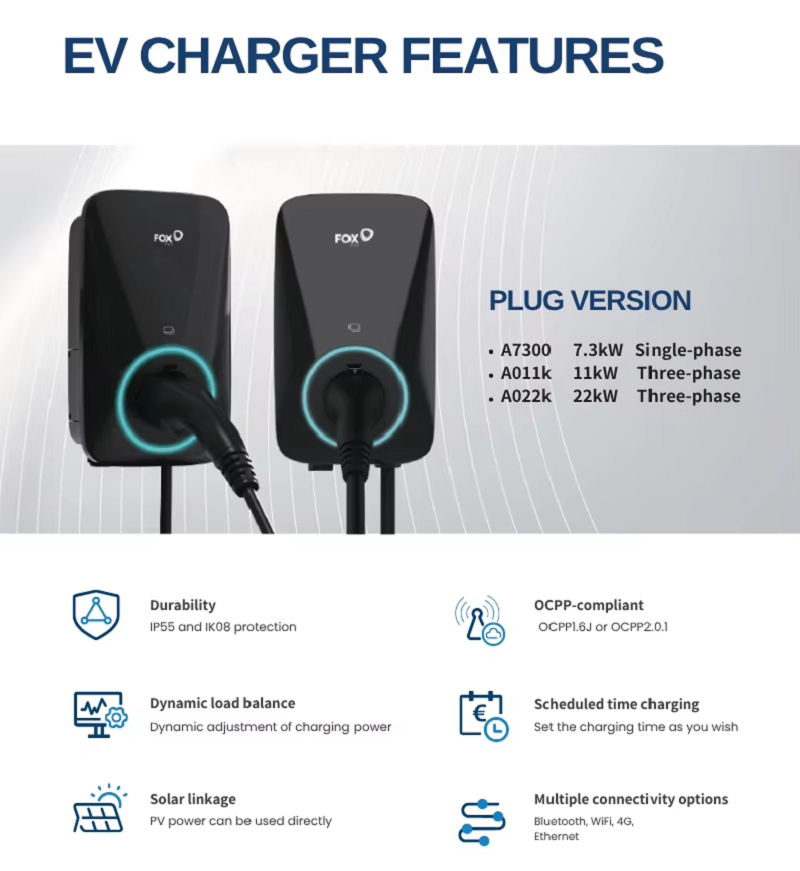

Features of AC EV Charger:

The AC EV Charger boasts a streamlined design that is simple yet elegant, compact, intelligent, and easy to use. Through the APP, vehicle owners will be able to conveniently configure the EV Charger remotely. We offer a variety of working modes suitable for different scenarios, ideal for home, business, and charging station operators.

AC Charging Station

RELATED PRODUCTS

FOXESS 22KW Plug AC Charging Station Potable AC EV Charger A022KP1-E-2-WO

Model	A022KP1-E-2-W
Product size (mm)	320190130mm
Pacage size (mm)	450220250mm
G.W (kg)	8kg
INPUT
Wiring scheme	1P+N+PE
Voltage	400V+/-20%
Max current A	32A
HZ	50/60HZ
OUTPUT
Voltage	400V+/-20%
Max current A	32A
Rated power KW	22KW
USER INTERFACE& CONTROL
Connector type	Type 2 cable
Start mode	Plug&play/RFID card/APP
RFID Reader	Mifare ISO/IEC 14443 A
COMMUNICATION
Bluetooth	yes
WIFI	yes
OCCPP1.6	NO
4G(Module)	NO
LAN	NO
ENVIRONMENT
Installation	Wall-mount/post-mount
Operation temperature(℃)	-25~50
Operation humidity (%)	5 ~ 95,no condensation
Operation altitude (m)	≤2000m
SAFTY
IP protection rating	IP55
IK protection rating	IK08
Residual current detection*(mA)	AC30/DC6
EMC	Class B
Certification	CE/UKCA
Electrical Protection	Over current protection, Ground protection, Surge protection, Over/Under voltage protection, Over temperature protection

Model	A022KP1-E-2-W
Product size (mm)	320190130mm
Pacage size (mm)	450220250mm
G.W (kg)	8kg
INPUT
Wiring scheme	1P+N+PE
Voltage	400V+/-20%
Max current A	32A
HZ	50/60HZ
OUTPUT
Voltage	400V+/-20%
Max current A	32A
Rated power KW	22KW
USER INTERFACE& CONTROL
Connector type	Type 2 cable
Start mode	Plug&play/RFID card/APP
RFID Reader	Mifare ISO/IEC 14443 A
COMMUNICATION
Bluetooth	yes
WIFI	yes
OCCPP1.6	NO
4G(Module)	NO
LAN	NO
ENVIRONMENT
Installation	Wall-mount/post-mount
Operation temperature(℃)	-25~50
Operation humidity (%)	5 ~ 95,no condensation
Operation altitude (m)	≤2000m
SAFTY
IP protection rating	IP55
IK protection rating	IK08
Residual current detection*(mA)	AC30/DC6
EMC	Class B
Certification	CE/UKCA
Electrical Protection	Over current protection, Ground protection, Surge protection, Over/Under voltage protection, Over temperature protection
