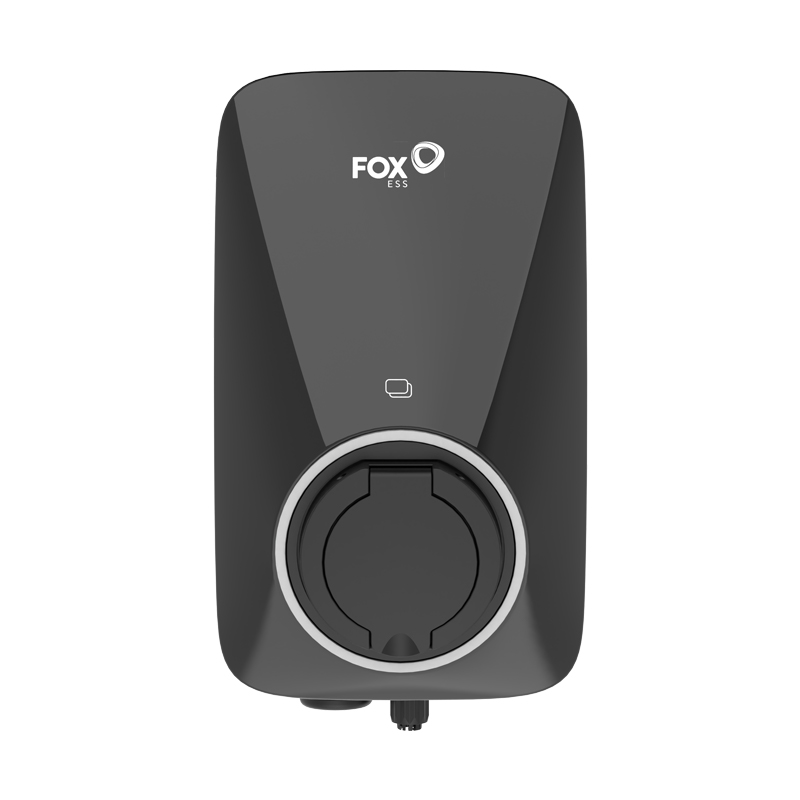

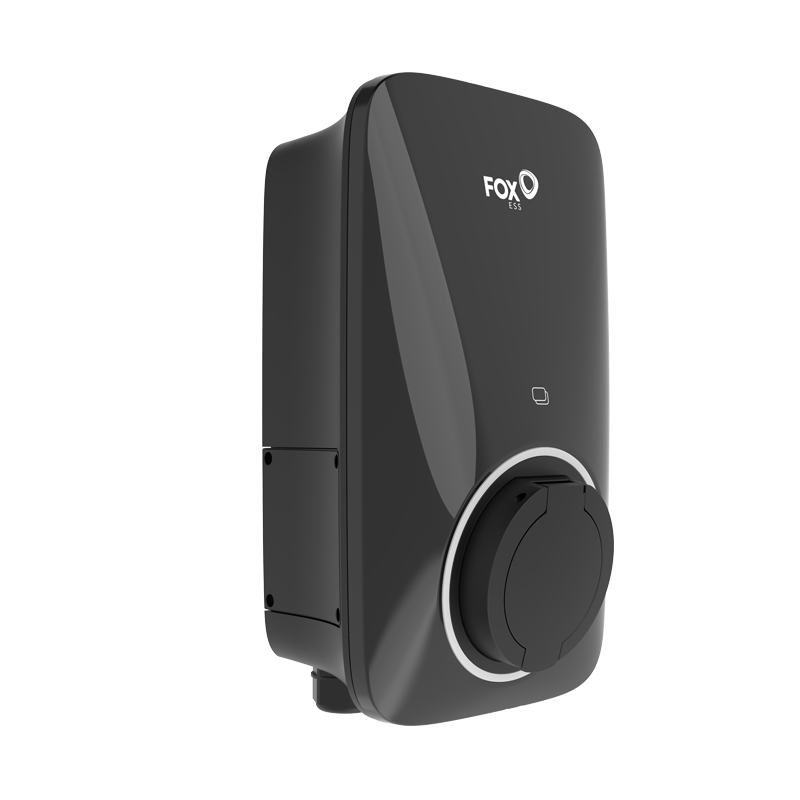

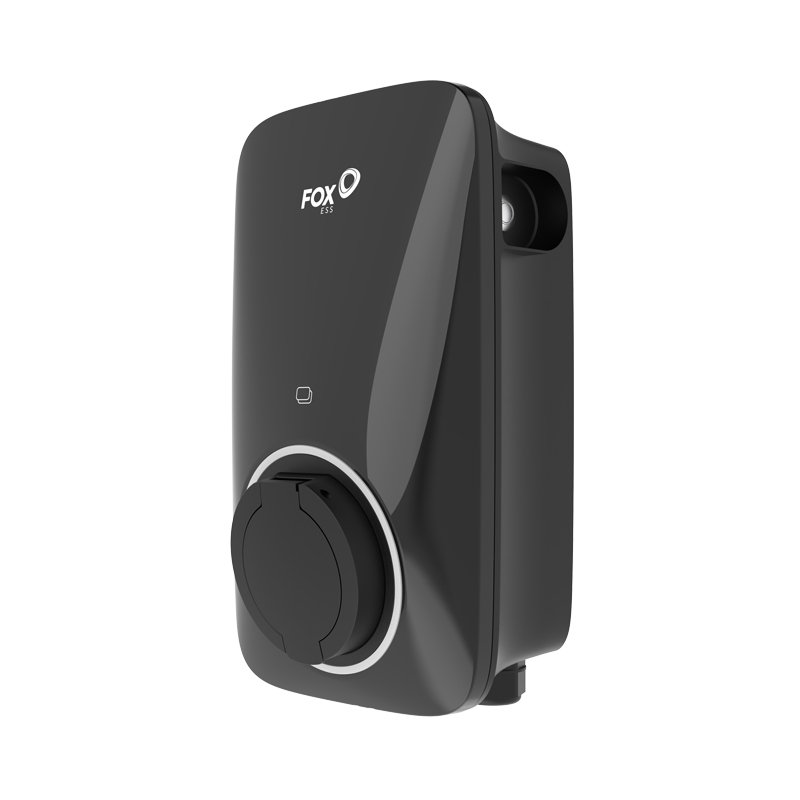

The AC EV Charger boasts a streamlined design that is simple yet elegant, compact, intelligent, and easy to use. Through the APP, vehicle owners will be able to conveniently configure the EV Charger remotely. We offer a variety of working modes suitable for different scenarios, ideal for home, business, and charging station operators.
Product Description
Features of AC EV Charger:
The AC EV Charger boasts a streamlined design that is simple yet elegant, compact, intelligent, and easy to use. Through the APP, vehicle owners will be able to conveniently configure the EV Charger remotely. We offer a variety of working modes suitable for different scenarios, ideal for home, business, and charging station operators.
Specification
Model
A022KS1-E-2-WO
Product size (mm)
320*190*145mm
Pacage size (mm)
450*330*170mm
G.W (kg)
4.5kg
INPUT
Wiring scheme
1P+N+PE
Voltage
230V+/-20%
Max current A
32A
HZ
50/60HZ
OUTPUT
Voltage
230V+/-20%
Max current A
32A
Rated power KW
7.3KW
USER INTERFACE& CONTROL
Connector type
Type 2 socket
Start mode
Plug&play/RFID card/APP
RFID Reader
Mifare ISO/IEC 14443 A
COMMUNICATION
Bluetooth
yes
WIFI
yes
OCCPP1.6
yes
4G(Module)
Optional
yesLAN
NO
ENVIRONMENT
Installation
Wall-mount/post-mount
Operation temperature(℃)
-25~50
Operation humidity (%)
5 ~ 95,no condensation
Operation altitude (m)
≤2000m
SAFTY
IP protection rating
IP55
IK protection rating
IK08
Residual current detection*(mA)
AC30/DC6
EMC
Class B
Certification
CE/UKCA
Electrical Protection
Over current protection, Ground protection, Surge protection, Over/Under voltage protection, Over temperature protection
Specification
Model
A022KS1-E-2-WO
Product size (mm)
320*190*145mm
Pacage size (mm)
450*330*170mm
G.W (kg)
4.5kg
INPUT
Wiring scheme
1P+N+PE
Voltage
230V+/-20%
Max current A
32A
HZ
50/60HZ
OUTPUT
Voltage
230V+/-20%
Max current A
32A
Rated power KW
7.3KW
USER INTERFACE& CONTROL
Connector type
Type 2 socket
Start mode
Plug&play/RFID card/APP
RFID Reader
Mifare ISO/IEC 14443 A
COMMUNICATION
Bluetooth
yes
WIFI
yes
OCCPP1.6
yes
4G(Module)
Optional
yesLAN
NO
ENVIRONMENT
Installation
Wall-mount/post-mount
Operation temperature(℃)
-25~50
Operation humidity (%)
5 ~ 95,no condensation
Operation altitude (m)
≤2000m
SAFTY
IP protection rating
IP55
IK protection rating
IK08
Residual current detection*(mA)
AC30/DC6
EMC
Class B
Certification
CE/UKCA
Electrical Protection
Over current protection, Ground protection, Surge protection, Over/Under voltage protection, Over temperature protection
